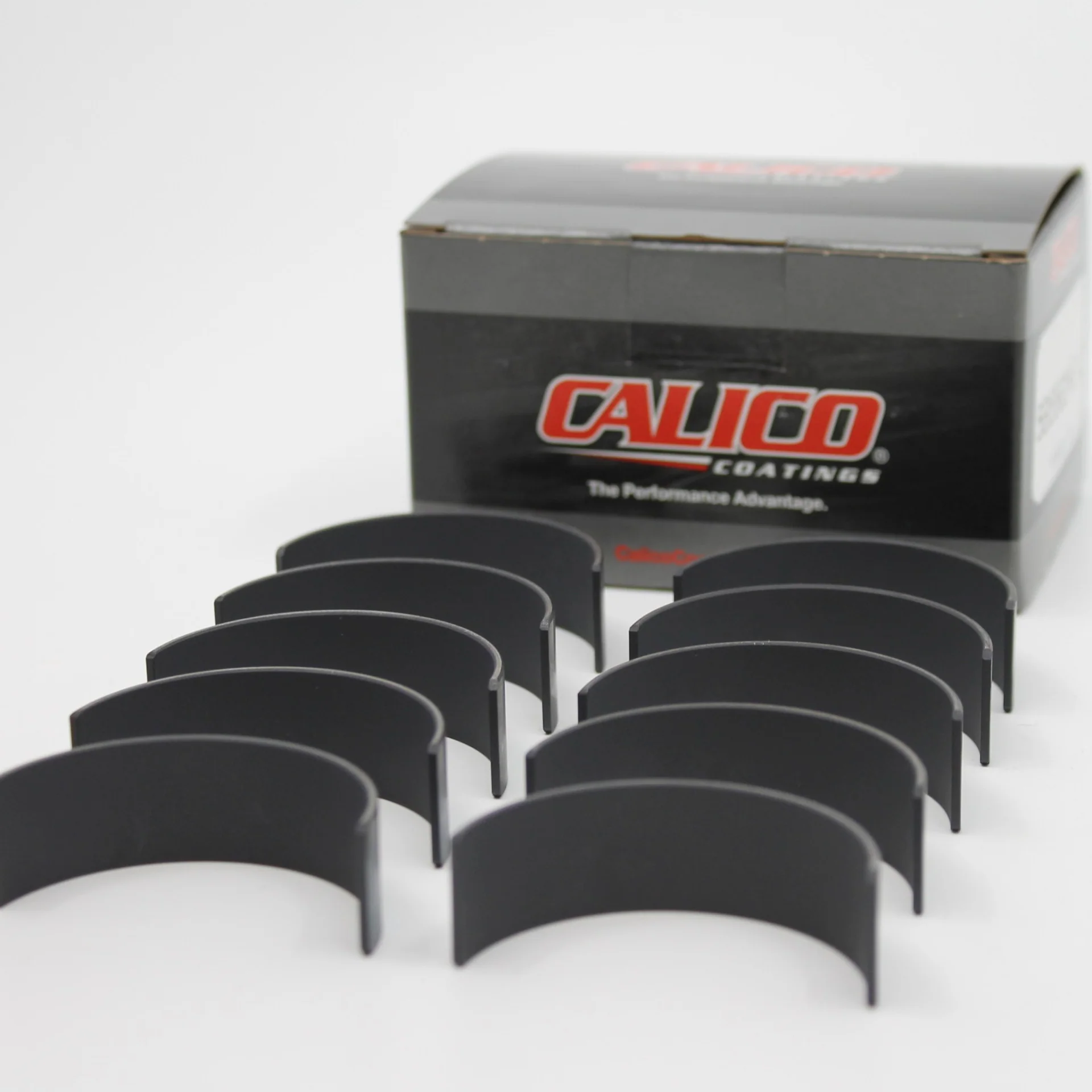

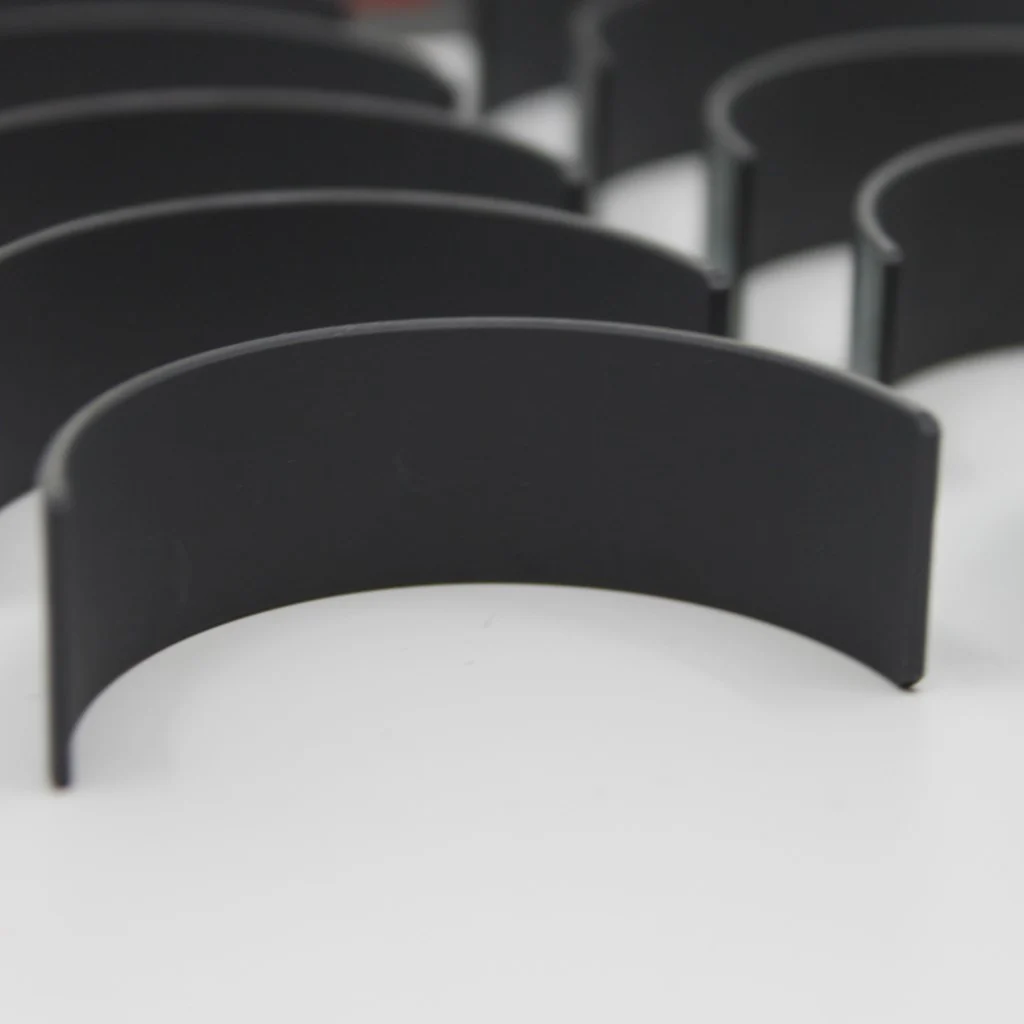

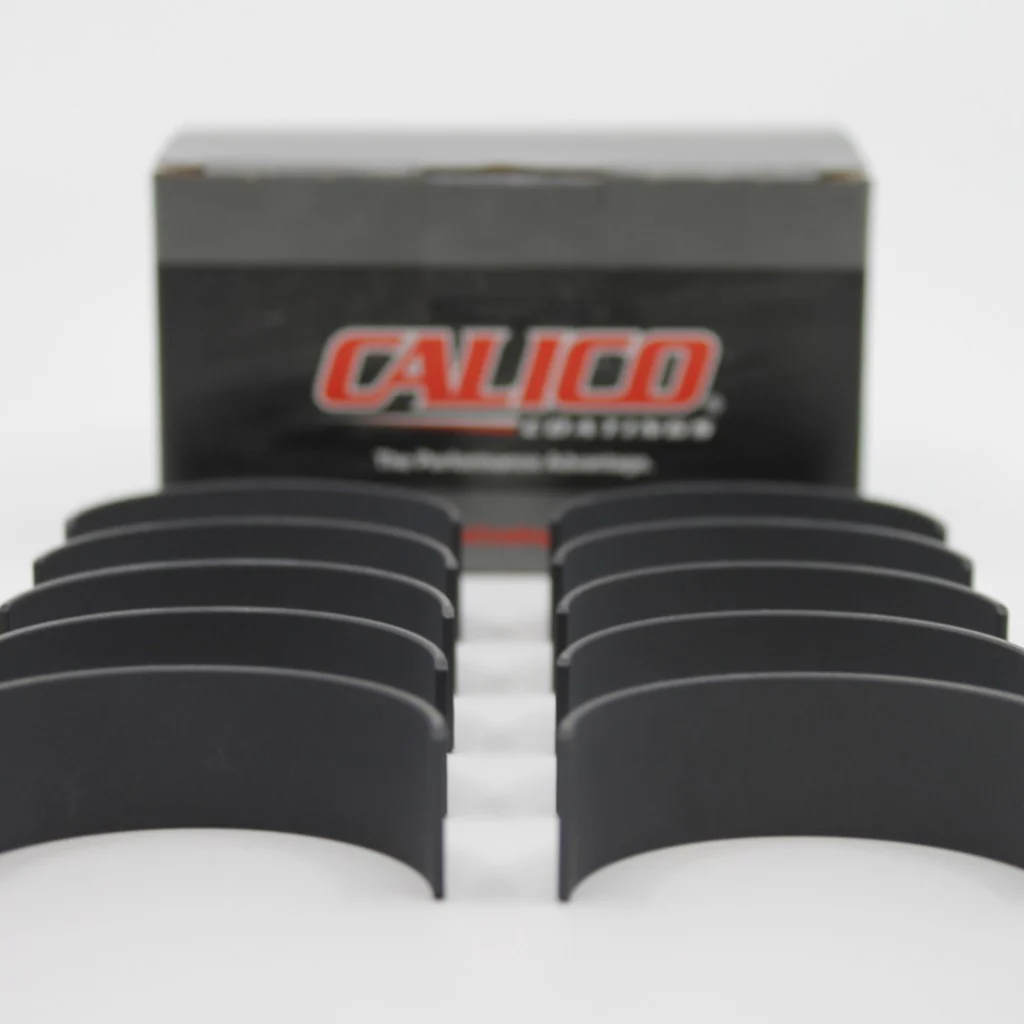

Audi / VW TTRS / RS3 2.5L 20v TFSI 5Cyl. DAZA & DNWA EA855 Evo (no notch) rod bearing set ACL race Calico CT-1 coated 5B5562HXC-C HX-serie with 0.025mm (0.001¡±) extra clearance
Cylinders ? ?Inline 5
Motorcode ? ?CEPA, CEPB (Gen 1) + DAZA also BUT RODS REQUIRE BEARING NOTCHES, DNWA, EA855 DAZA, TANG
Half type ? ?Identical halves
Motorinhoud ? ?2.5L
Material ? ?F781
Max overall Length ? ?17, 4 mm / 0.6850 in
Max. wall at crown ? ?1, 392 mm / 0.0548 in
Min. Std. Shaft size ? ?47, 758 mm / 1.8802 in
Max. Std. Shaft size ? ?47, 778 mm / 1.8810 in
Min. Std tunnel size ? ?50, 6 mm / 1.9921 in
Max. Std. Tunnel size ? ?50, 619 mm / 1.9929 in
