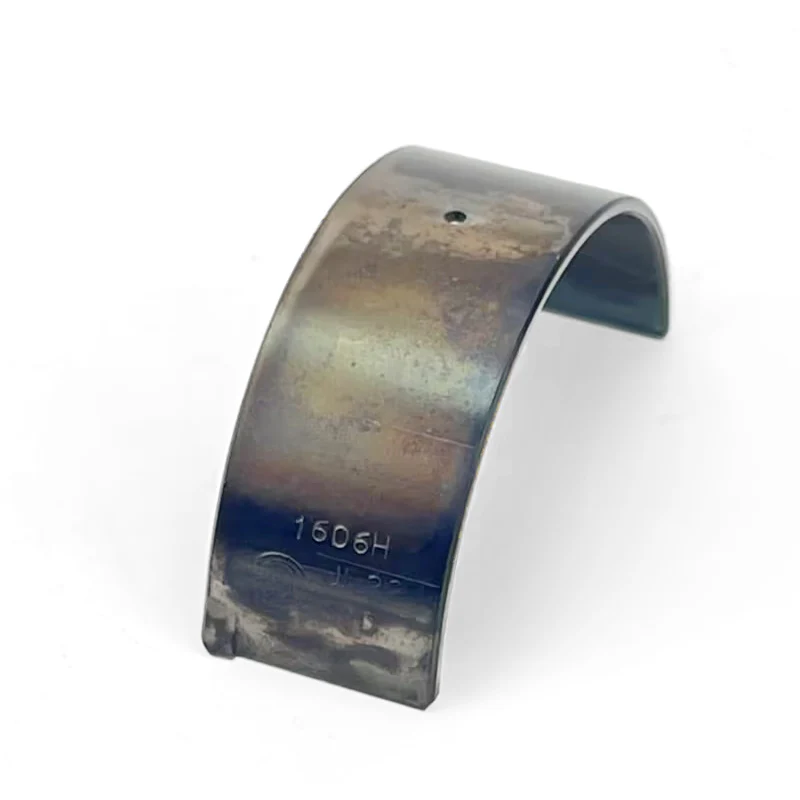

ACL Connecting Rod Bearings for Audi TTS 8J/ 2.5T DAZA VW MK6R 2.0 TFSI EA113 EA888 GEN2
| ENGINE BEARINGS | ||
| Sizes | STD, .025, .25, .50 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | |
| Material |
Tri-metal Hardened steel backs |
|
| Min Std Shaft Size |
1.8802" /47.758mm |
|
| Max Std Shaft Size |
1.8810" /47.778mm |
|
| Min Std Tunnel Size |
1.9921" /50.600mm |
|
| Max Std Tunnel Size |
1.9929" /50.619mm |
|
| Max Wall at Crown |
0.0553" / 1.405mm |
0.0548" /1.392mm |
| Max Overall Length |
0.748" / 19.00mm |
|
| Notes | Bearing has 1.65mm oil hole at crown | |
Engines?Audi / VW - 1.6 1.8 2.0 (2V, 4V, 5V, Turbo applications, 1983-2003)
