Engineered for ultimate performance, precision, and reliability.

The JDY BMW G8X Single Turbo Kit??is purpose-built for the Toyota A90 Supra/BMW M240/M340/M440 platforms, delivering unmatched horsepower potential, efficiency, and durability. Designed with premium materials and verified by advanced simulation testing, this kit sets a new benchmark for single-turbo conversions.

Key Features & Technical Highlights

Exhaust Manifold (316 Stainless Steel)

CNC-machined one-piece 6-port flange.
Constructed from 42mm OD / 36mm ID?316 stainless tubing (3 mm wall).
Welded with Fronius TIG equipment, using dual-sided argon shielding for maximum strength and reliability.
Verified via ANSYS fluid dynamics testing for optimized gas flow and durability.

Turbo Compatibility

ALL Precision Turbo T4 sized(6670/6870/7275/7675) turbochargers.
?ALL Precision Turbo Sportsman ?6875, 7675, 7480, 8085, 8385 and more

Exhaust Sealing & Hardware

Solid copper manifold gasket replaces OEM MLS for superior sealing.
Upgraded reinforced V-band clamps for durability under extreme pressure and heat.

Downpipe (304 Stainless Steel)

4-inch OD, 2 mm wall stainless steel
Fully welded inside and out, with dual-sided argon shielding.
Compatible with OEM and aftermarket mid-pipes.
Additional O2 bung for wideband sensors, with OEM O2 sensor provisions included.

Wastegate & Boost Control

Precision Turbo GEN2 56MM WASTEGATE.?
Choice option of internal dump and external dump exhaust routing(Screamer pipe ).

Oil & Water Lines

Feed line: Stainless steel AN4 swivel fittings, PTFE core, stainless braided exterior.
Return line: Upgraded to PTFE core piping, with aluminum AN10 fittings, black hard-anodized finish.
All lines covered with fire-resistant thermal sleeves.
CNC-machined aluminum fittings and flanges, anodized black for strength and longevity.

Catch Can Integration

CNC-machined aluminum bracket for?JDY oil catch can system.
Includes all necessary brackets, hoses, bolts, quick-connects, and wiring adapters for a seamless plug-and-play relocation.
JDY engine oil catch can is REQUIRED and INCLUDED?for this kit.?

Charge Piping & Clamps

3-inch aluminum charge pipes, fully TIG welded inside and out, hard-anodized finish.
All connections feature JDY Fast-Release Wiggins Clamps ¨C no silicone couplers required.
CNC-machined billet throttle body flange replaces OEM plastic unit.

Heat Management

Custom 304 stainless steel heat shields protecting the plastic valve cover, firewall, and electrical connections.
Exhaust housing, turbo manifold, downpipe, and wastegate dump pipes coated with?ceramic thermal barrier (same tech used in race pistons).
Enhanced heat protection ensures long-term reliability of OEM wiring and components.

Materials Overview

Exhaust Manifold: 316 Stainless Steel
Downpipe: 304 Stainless Steel
Charge Piping: Aluminum Alloy (Hard-Anodized)
Oil & Water Lines: PTFE Core with Stainless Braiding & Aluminum AN Fittings
Coolant Hoses: Reinforced Silicone with Braided Mesh
Heat Shields: 304 Stainless Steel?

Why Choose JDY?

CAD-designed and ANSYS fluid-tested for performance validation.
Race-proven welding and fabrication standards.
OEM-plus fitment: Designed for direct compatibility with factory and aftermarket systems.
Unmatched power flexibility: Compatible with multiple Precision Turbo options for 800¨C1600+ HP builds.

A90 Supra

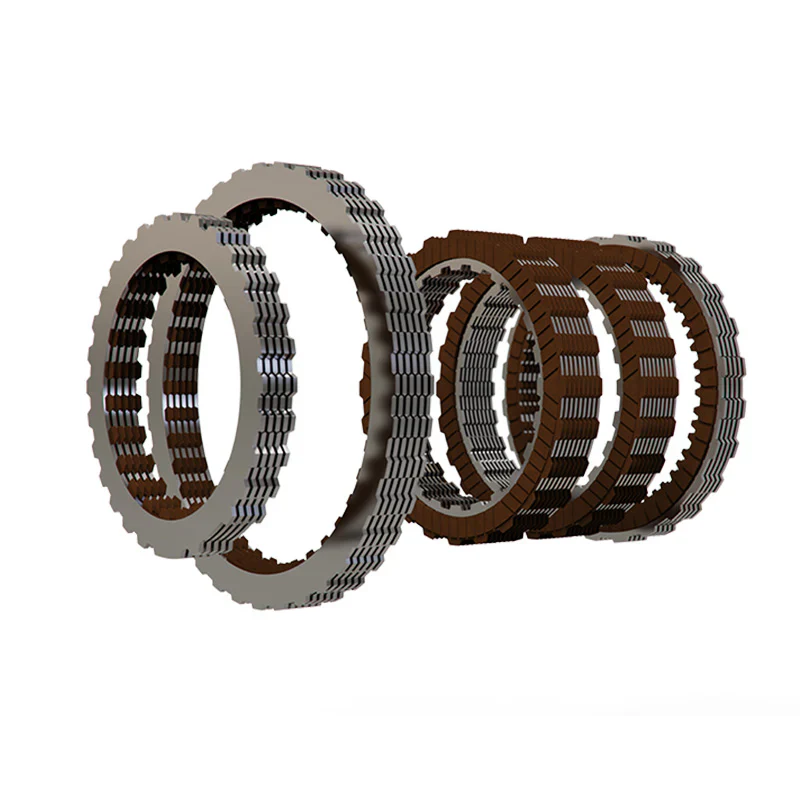

DODSON DMS-8534 CLUTCH KIT SUPERSTOCK STAGE 1 (8HP51) FOR TOYOTA SUPRA (A90/A91) / BMW Z4 (G29) / 3 SERIES (G20)

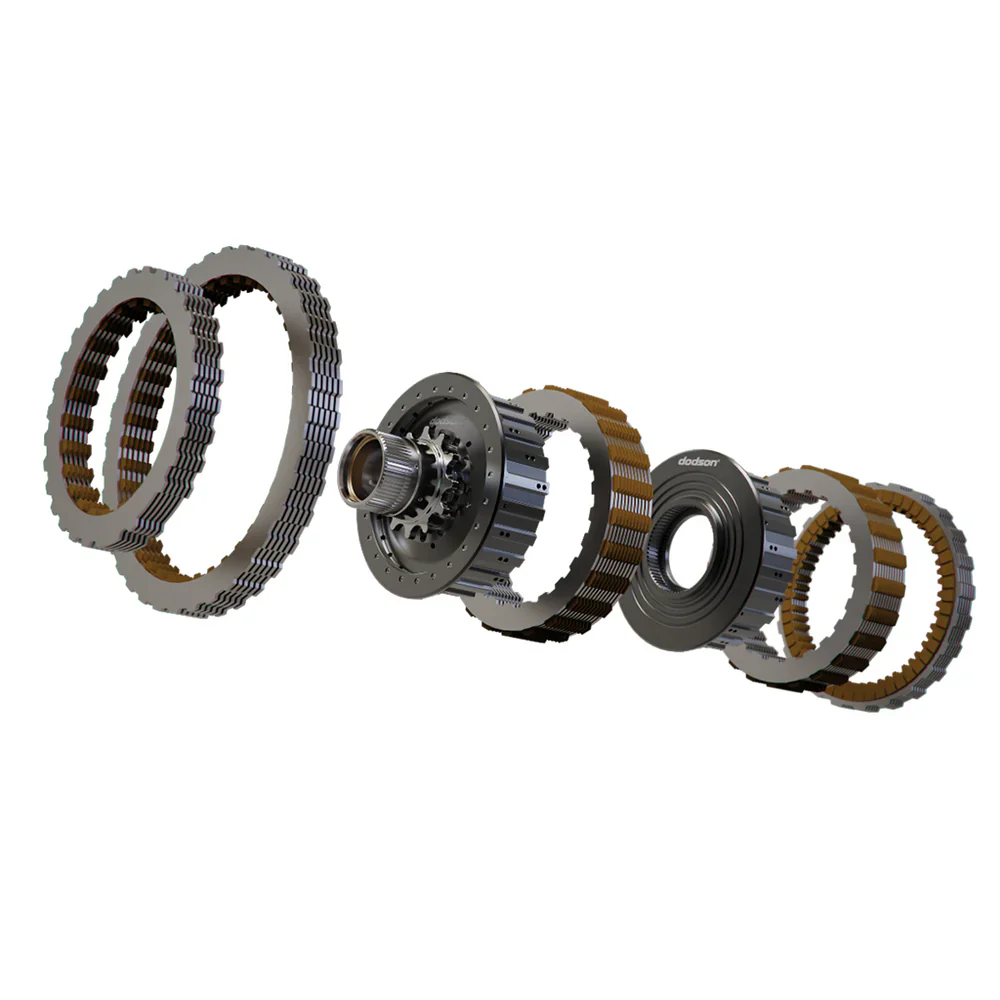

DODSON DMS-8535 CLUTCH KIT SPORTSMANS STAGE 2 FOR TOYOTA GR SUPRA (8HP51 GEARBOX)

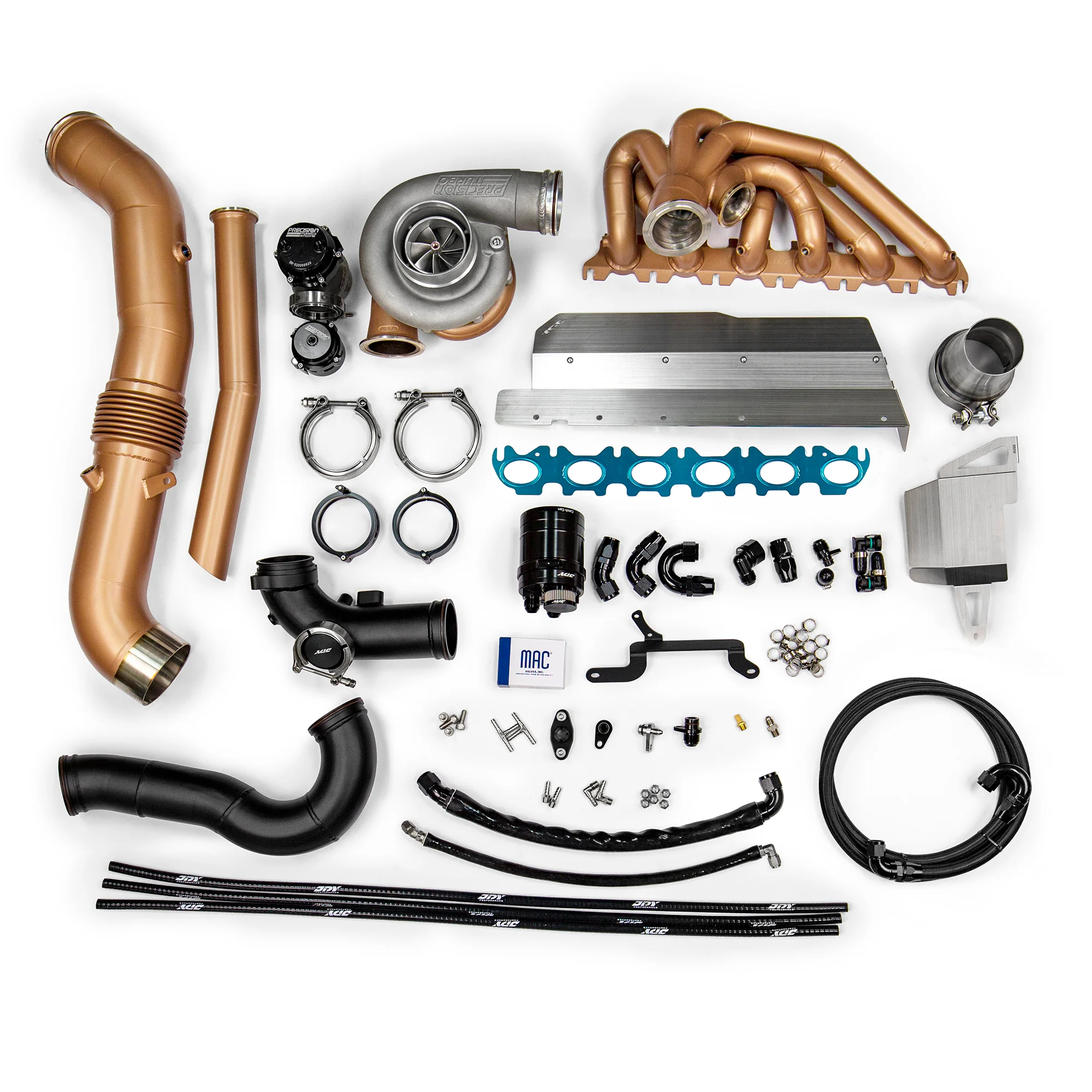

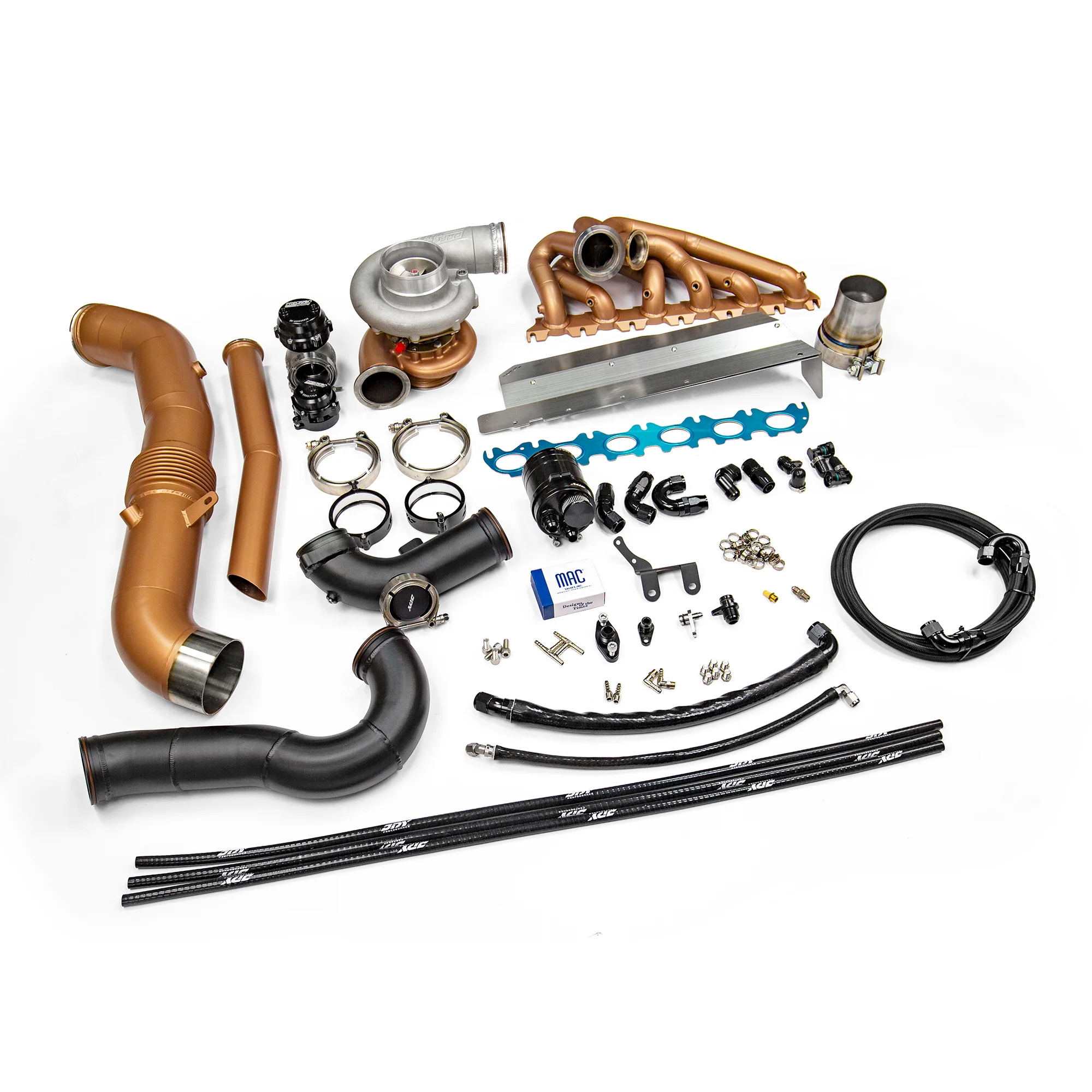

JDY BMW/Toyota B58 Single Turbo Kit-A90 Supra/ M240/M340/M440

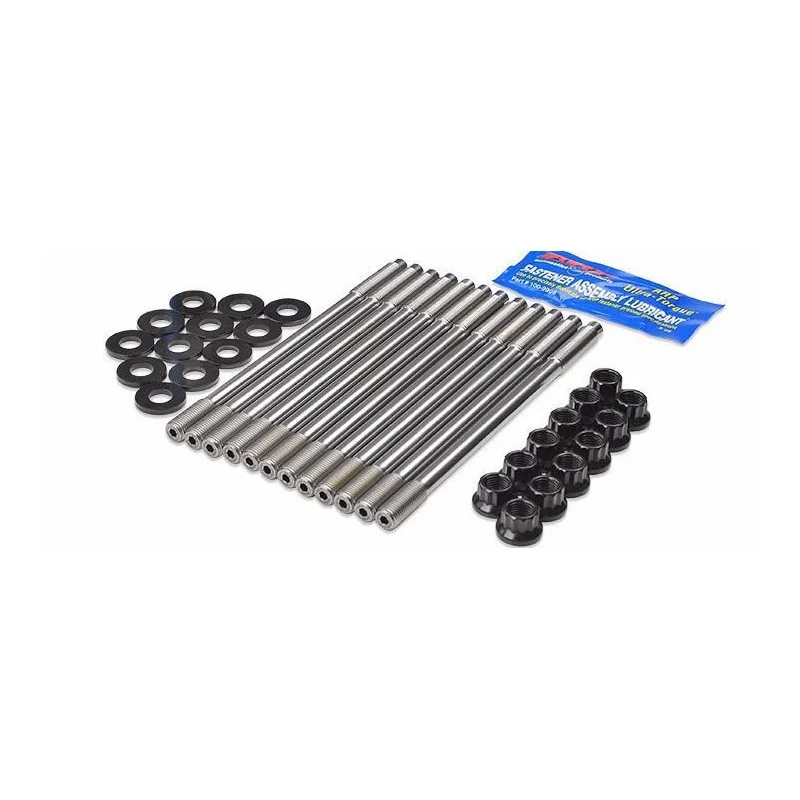

ARP Supra/M240/340/440 B58 CA625+ Head Stud Kit
