Complete High-Performance Valvetrain Solution

The JDY Performance Kelford Valvetrain Kit is a fully integrated upgrade package designed for high-performance EA888 engines operating under increased boost, elevated RPM, and extreme cylinder pressures.

This kit combines Kelford’s precision-engineered beehive valve springs and stainless performance valves with Supertech valve stem seals, delivering a balanced and reliable valvetrain system for both street and race applications.

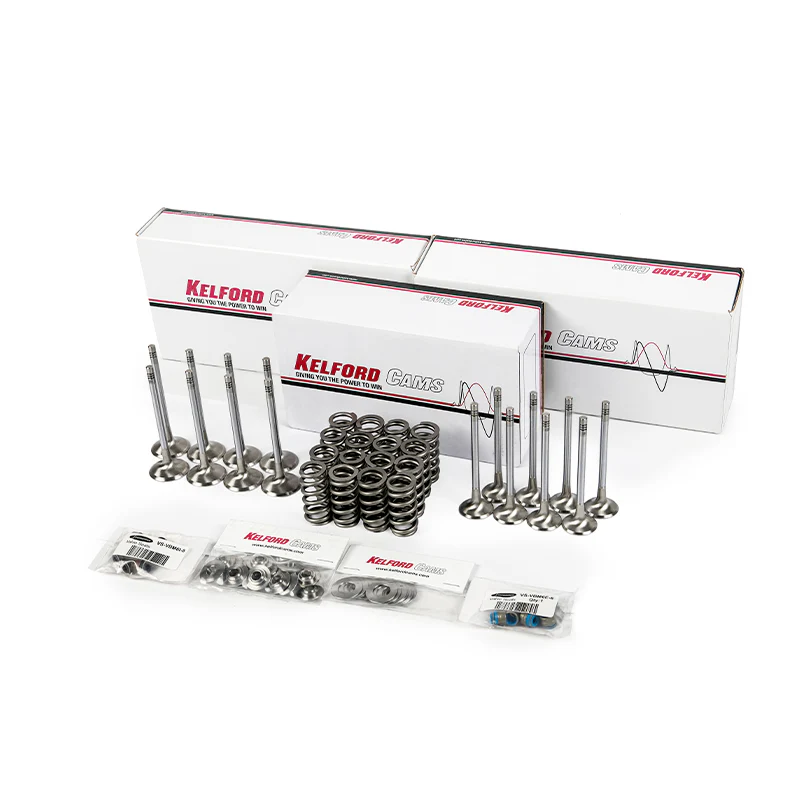

What’s Included

Kelford Beehive Valve Spring Set (KVS276-BT)
Kelford Intake Valve Set
Kelford Exhaust Valve Set
Supertech Valve Stem Seals (Intake + Exhaust)

Key Features & Benefits

Designed for High Boost & High RPM Stability

Engineered to maintain precise valve control under aggressive cam profiles and increased boost levels, minimizing valve float and ensuring consistent performance at high engine speeds.

High-Temperature Stainless Steel Valves

The Kelford valves are manufactured from premium austenitic stainless steel alloys specifically developed for high-performance engine applications.

Alloy composition includes chromium, nickel, and tungsten for enhanced strength and thermal stability
Excellent resistance to heat, oxidation, and fatigue under extreme exhaust gas temperatures
Maintains structural integrity in high cylinder pressure and forced induction environments

Triple-Groove Valve Lock Design (Drop-In Compatibility)

Valves feature a precision triple-groove keeper design at the stem
Fully compatible with OEM valve locks (keepers)
No additional valve locks required, simplifying installation and reducing build complexity

Precision Forged & Heat Treated

Forged construction ensures optimal grain structure and durability
Advanced heat treatment process improves tensile strength and fatigue resistance
Designed for long service life in demanding conditions

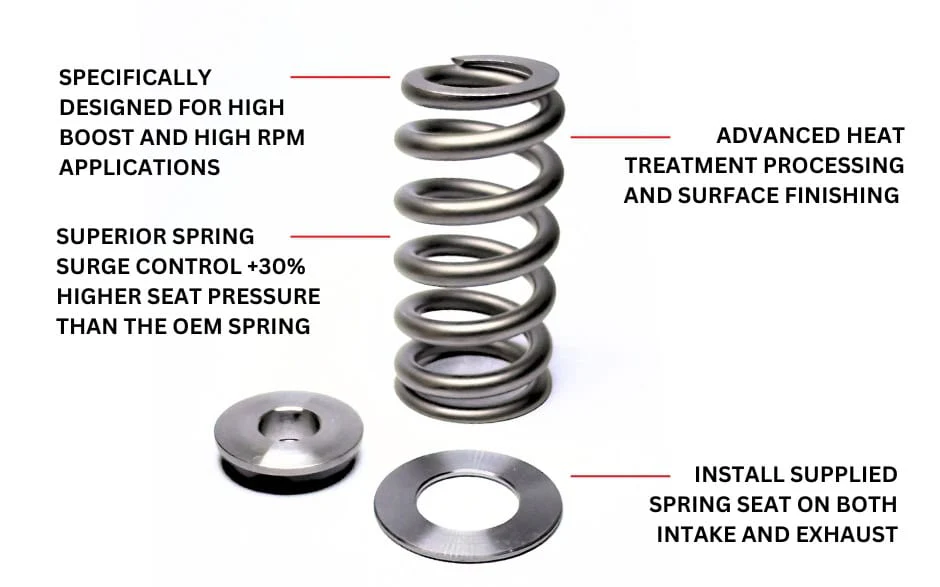

Beehive Valve Spring Technology

Kelford’s beehive spring design offers significant advantages over traditional spring setups:

Reduced valvetrain mass for improved engine response
Increased stability at high RPM
Lower harmonic resonance for smoother operation and reduced wear

Complete Sealing Solution

Includes Supertech valve stem seals for both intake and exhaust
Ensures proper oil control and long-term reliability

Valve Specifications

Intake Valves

Head Diameter: 33.90mm
Stem Diameter: 5.98mm
Overall Length: 104mm
Tip Length: 5mm
Triple-groove design – uses OEM valve locks

VEHICLE FITMENT BY ENGINE

VW & Audi - 2.0T FSI EA113 Engines

AUDI - A4 2005-2008 (B7) 2.0T EA113 TFSI engines
AUDI - A6 2005-2011 (C6) 2.0T EA113 TFSI engines
AUDI - A6 Allroad 2005-2011 (C6) 2.0T EA113 TFSI engines
AUDI - TT 2008-2015 (MK2 - 8J) 2.0T EA113 TFSI engines
AUDI - A3 2006-2013 (MK2 - 8P) 2.0T EA113 TFSI engines
VW - GTI 2006-2009 (MK5) 2.0T EA113 FSI engines
VW - Jetta & Jetta GLI 2006-2010 (MK5) 2.0T EA113 FSI engines
VW - Passat 2006-2010 (B6) 2.0T EA113 FSI engines
VW - EOS 2006-2015 (1F7) 2.0T EA113 FSI engines

VW & Audi - 2.0T TSI EA888 Gen 1/2 Engines

Audi - A4 2009-2015 (B8 - B8.5) 2.0T TSI EA888 Gen 1/2 engines*
Audi - A4 Allroad 2009-2015 (B8 - B8.5) 2.0T TSI EA888 Gen 1/2 engines*
Audi - A5 2008-2015 (B8 - B8.5) 2.0T TSI EA888 Gen 1/2 engines*
Audi - Q5 2008-2015 (8R) 2.0T TSI EA888 Gen 1/2 engines*
Audi - A6 2012-2015 (C7 - C7.5) 2.0T TSI EA888 Gen 1/2 engines*
Audi - TT 2008-2015 (MK2 - 8J) 2.0T TSI EA888 Gen 1/2 engines*
Audi - A3 2006-2013 (MK2 - 8P) 2.0T TSI EA888 Gen 1/2 engines*
Audi - Q3 2011-2015 (8U) 2.0T TSI EA888 Gen 1/2 engines*
VW - GTI 2006-2009 (MK5) 2.0T TSI EA888 Gen 1/2 engines*
VW - GTI 2010-2014 (MK6) 2.0T TSI EA888 Gen 1/2 engines*
VW - Jetta & Jetta GLI 2010-2014 (MK6) 2.0T TSI EA888 Gen 1/2 engines*
VW - SportWagen 2011-2014 (MK6) 2.0T TSI EA888 Gen 1/2 engines*
VW - CC 2009-2015 (3C8) 2.0T TSI EA888 Gen 1/2 engines*
VW - Passat 2006-2010 (B6) 2.0T TSI EA888 Gen 1/2 engines*
VW - EOS 2006-2015 (1F7) 2.0T TSI EA888 Gen 1/2 engines*
VW - Beetle 2011-2015 (MK2) 2.0T TSI EA888 Gen 1/2 engines*

Exhaust Valves

Head Diameter: 28mm
Stem Diameter: 5.97mm
Overall Length: 102mm
Tip Length: 5mm
Triple-groove design – uses OEM valve locks

Why This Kit?

Upgrading individual valvetrain components without proper matching can lead to instability and premature wear. This kit is designed as a complete system, ensuring:

Correct spring pressure matched to valve mass
Improved durability and reduced component stress
Reliable performance across street, track, and high-power builds

2.0 TFSI

JDY Performance Kelford Valvetrain Kit – 2.0T/FSI
